Product Details
Select your iotty:
1 Switch controller
2 Switch controller
3 Switch controller
4 Switch controller
1 Switch Controller
Technical Specifications:
- Mechanical Neutral wire required
- Input 110 Vac
- Frequency 60Hz
- Current: only switch - without Dimmer Module: Max 5A per output (resistive)
- With Dimmer Module: 350W INC, 150W LED, 150W CFL per output max 750W combined all outputs
- Ambient temperature: 77°F | 25°C
- Operating temperature: 32°F to 104°F | 0°C to 40°C
- Only works with 2.4GHz Wi-Fi band
- Electrical Control (Type 1 Action)
- Pollution Degree: 2 Rated Impulse
- Voltage: 2.5kV
- Type of load: Resistive load
- Overcurrent protective device external: 15A circuit breaker
iotty Supports:
- Any bulb (incandescent, fluorescent, LED) with a load of maximum 5A
- Any other resistive load of maximum 5A
H - 4.79”
W - 3.21”
Portion in wall
D - 0.94” (w/ Dimmer - 1.38”)
H - 2.66”
W - 1.67”
Specifications
Technical Specifications:
- Mechanical Neutral wire required
- Input 110 Vac
- Frequency 60Hz
- Current: only switch - without Dimmer Module: Max 5A per output (resistive)
- With Dimmer Module: 350W INC, 150W LED, 150W CFL per output max 750W combined all outputs
- Ambient temperature: 77°F | 25°C
- Operating temperature: 32°F to 104°F | 0°C to 40°C
- Only works with 2.4GHz Wi-Fi band
- Electrical Control (Type 1 Action)
- Pollution Degree: 2 Rated Impulse
- Voltage: 2.5kV
- Type of load: Resistive load
- Overcurrent protective device external: 15A circuit breaker
iotty Supports:
- Any bulb (incandescent, fluorescent, LED) with a load of maximum 5A
- Any other resistive load of maximum 5A

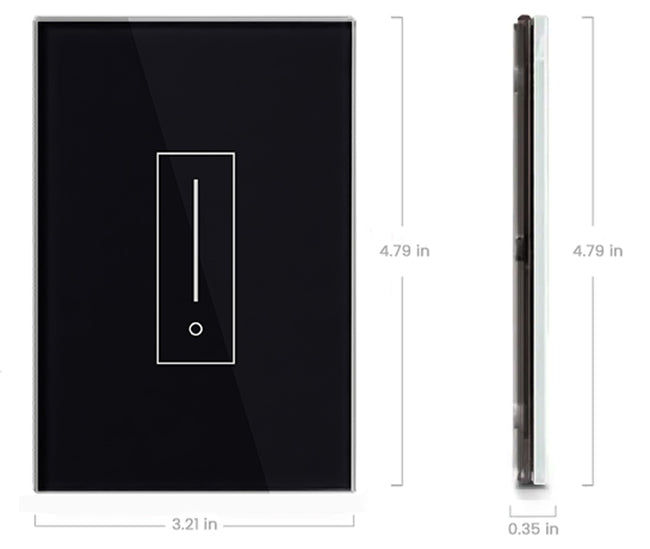

Dimensions
H - 4.79”
W - 3.21”
Portion in wall
D - 0.94” (w/ Dimmer - 1.38”)
H - 2.66”
W - 1.67”
Features
-
new dimmer feature
Make any Gen 2 switch dimmable
-
acitivity notifications
See what's happening at home
-
share with other users
Share access with household members
-
AWAY MODE
Turn on iotty randomly so it’ll seem you’re at home.
-
ACTIVITY DEPENDENT
Use WI-Fi to create groups of multi-way switches, or a central button control them all.
Works with
Indoor Lights
Outdoor Lights
Gates
Blinds
Shutters
External Dimmers
External Relays
Garage Doors
